What is a Hollow Shaft? Design, Advantages, and Applications

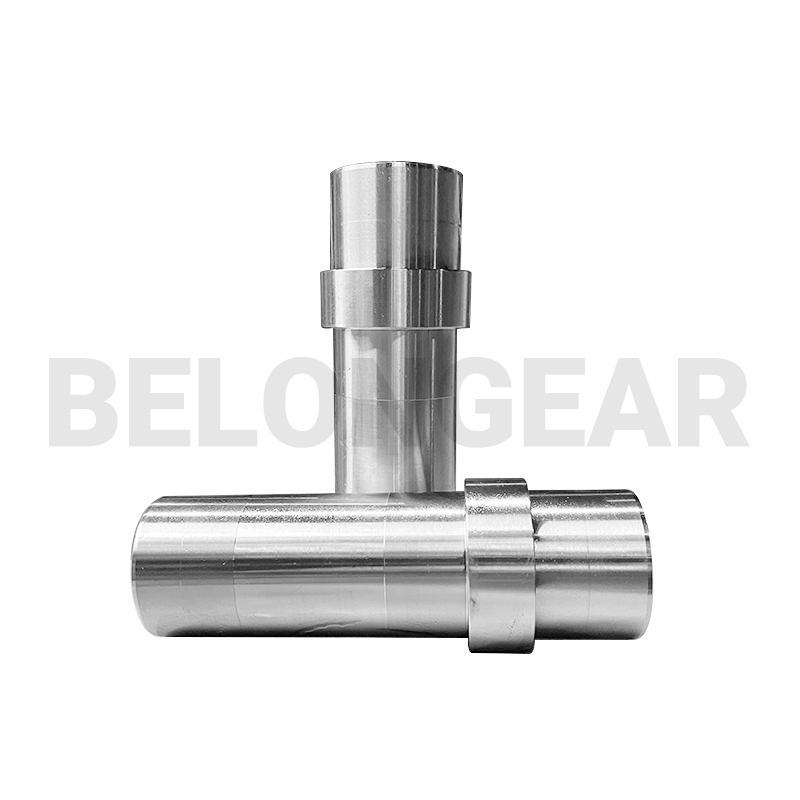

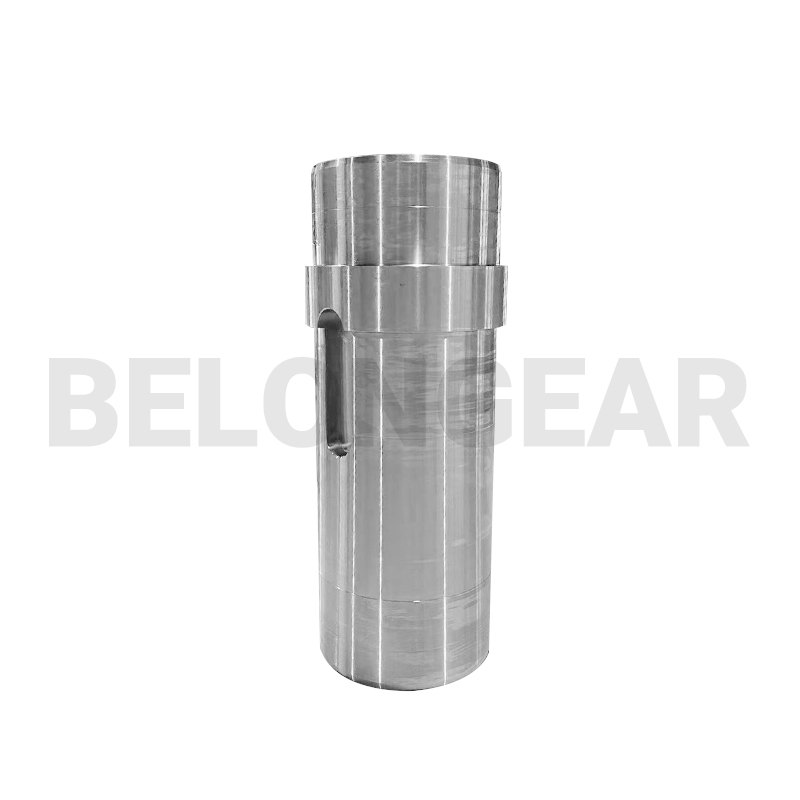

A hollow shaft is a type of mechanical shaft with a cylindrical, hollow cross section instead of a completely solid body. While traditional solid shafts are widely used in power transmission systems, hollow shafts have become increasingly popular in modern engineering due to their unique balance of strength, weight reduction, and efficiency. They are commonly applied in industries such as automotive, aerospace, robotics, cement, mining, and wind energy.

Definition and Structure of a Hollow Shaft

A hollow shaft is essentially a tube like structure that transmits torque and rotation from one machine component to another. Unlike a solid shaft, the central portion of a hollow shaft is removed, leaving an inner diameter and outer diameter. This structural modification does not significantly reduce its torsional strength but greatly lowers its weight.

The key design parameters of a hollow shaft include:

• Outer diameter (Do) – determines the strength and stiffness.

• Inner diameter (Di) – affects weight reduction and material savings.

• Length (L) – influences deflection and vibration characteristics.

• Material selection – usually alloy steel, stainless steel, or lightweight metals like aluminum and titanium depending on application.

Advantages of Hollow Shafts

1. Weight Reduction
   One of the main benefits of hollow shafts is their lower weight compared to solid shafts of the same size. This makes them ideal for applications where weight savings improve efficiency, such as in automotive drive shafts or aerospace components.

2. High Strength to Weight Ratio
   Despite being lighter, hollow shafts retain excellent torsional strength. In fact, for transmitting torque, a hollow shaft can achieve nearly the same performance as a solid shaft while using less material.

3. Material and Cost Savings
   By removing the inner core, manufacturers use less raw material, which can reduce costs in large scale production.

4. Improved Dynamics
   Hollow shafts have lower inertia compared to solid shafts, which helps reduce vibration, improve acceleration response, and enhance overall machine dynamics.

5. Integration of Other Components
   The hollow center can be used for routing cables, coolant, lubricants, or even sensors. This is especially useful in robotics and automation systems, where compact and multifunctional designs are required.

Applications of Hollow Shafts

Hollow shafts are widely adopted across industries where performance and efficiency are critical:

• Automotive Industry
  Used in drive shafts, steering columns, and transmission components to reduce vehicle weight and improve fuel efficiency.

• Aerospace
  Applied in turbine engines, landing gear systems, and structural components where strength and weight savings are vital.

• Robotics and Automation
  Hollow shafts allow cables and pneumatic lines to pass through, enabling compact and efficient robotic arm designs.

• Cement and Mining Equipment
  Used in gearboxes and rotary machinery where large torque transmission is required with reduced mass.

• Wind Turbines
  Hollow shafts in gearboxes and generators help improve efficiency and reduce overall turbine weight.

• Marine Industry
  Applied in propeller shafts and winches, ensuring reliable performance in demanding environments.

Hollow Shaft vs. Solid Shaft

While both types of shafts have their advantages, the choice depends on the specific application:

• Hollow shafts are preferred where weight reduction, efficiency, and integration are essential.

• Solid shafts are more common in simpler applications where cost is the primary concern and weight is less critical.

A hollow shaft is more than just a lightweight alternative to a solid shaft. It represents a smart engineering solution that combines strength, durability, and efficiency. From automobiles and aircraft to industrial gearboxes and robotics, hollow shafts provide significant benefits in terms of performance and design flexibility.

At Belon Gear, we specialize in precision manufacturing of custom shafts, including hollow shafts designed to meet international standards. Our advanced machining, heat treatment, and inspection processes ensure high quality performance for demanding applications. Whether you need hollow shafts for automotive, industrial, or renewable energy projects, our team can deliver reliable solutions tailored to your needs.
