Types of Gears Used in Marine Winches Belon Gear Solutions for Ocean Grade Reliability

Marine winches are essential components in ship operations, providing powerful mechanical assistance for anchoring, mooring, towing, and cargo handling. At the heart of every reliable marine winch lies a robust gear system. The choice of gear type directly affects performance, torque delivery, safety, and lifespan under harsh marine conditions.

At Belon Gear, we specialize in precision gear manufacturing, delivering tailor made solutions for marine winch systems that meet the highest demands of the maritime industry. Here are the most commonly used gear types in marine winches:

1. Spur Gears

Spur gears are simple and cost effective, commonly used in winches that require straightforward torque transmission between parallel shafts. Their ease of maintenance and high efficiency make them ideal for basic anchor winches and manual applications. However, their abrupt tooth engagement can lead to higher noise levels and limited load bearing capability.

2. Helical Gears

With angled teeth that engage gradually, helical gears provide smoother and quieter operation than spur gears. They are used in mid to high power winches such as towing and capstan systems. Belon Gear produces high precision helical gears with optimized tooth profiles, ensuring reduced vibration, increased load capacity, and extended operational life.

3. Bevel Gears

Bevel gears are used when power transmission between perpendicular shafts is needed — a frequent requirement in vertical winch designs. We offer both straight and spiral bevel gears, with spiral types preferred for higher load and quieter performance. Belon’s bevel gear solutions ensure precise meshing and durability in heavy duty marine use.

4. Worm Gears

Worm gears offer high torque reduction and a self locking mechanism, which is particularly useful in winches that must hold loads in position without backdriving, such as anchor winches or lifeboat hoists. Though less efficient due to sliding contact, their safety and simplicity make them a preferred choice in specific winch applications.

5. Planetary Gears

Known for compactness and superior load distribution, planetary gears are widely used in modern electric or hydraulic marine winches. They provide high torque in a compact design and are well suited for variable speed operation. Belon Gear designs planetary gear sets with advanced metallurgy and precision machining for maximum performance and longevity in offshore environments.

Common Gear Types Used in Marine Winches and Their Characteristics Advantages

1. Spur Gear

   • Structure: Straight teeth, parallel shaft transmission

   • Advantages: Simple design, easy to manufacture, high efficiency

   • Limitations: Noisy under load, limited to low/medium torque

   • Typical Use: Small anchor winches, manual or light-duty winches

2. Helical Gear

   • Structure: Teeth cut at an angle, gradual engagement

   • Advantages: Smooth and quiet operation, higher load capacity, durable

   • Limitations: Generates axial thrust, requires precise alignment

   • Typical Use: Medium to heavy-duty towing and mooring winches

3. Bevel Gear

   • Structure: Conical-shaped gear for intersecting shafts (often at 90°)

   • Advantages: Transmits power between non-parallel shafts, compact layout

   • Limitations: Complex to manufacture and align, limited speed range

   • Typical Use: Vertical winch systems, directional power changes

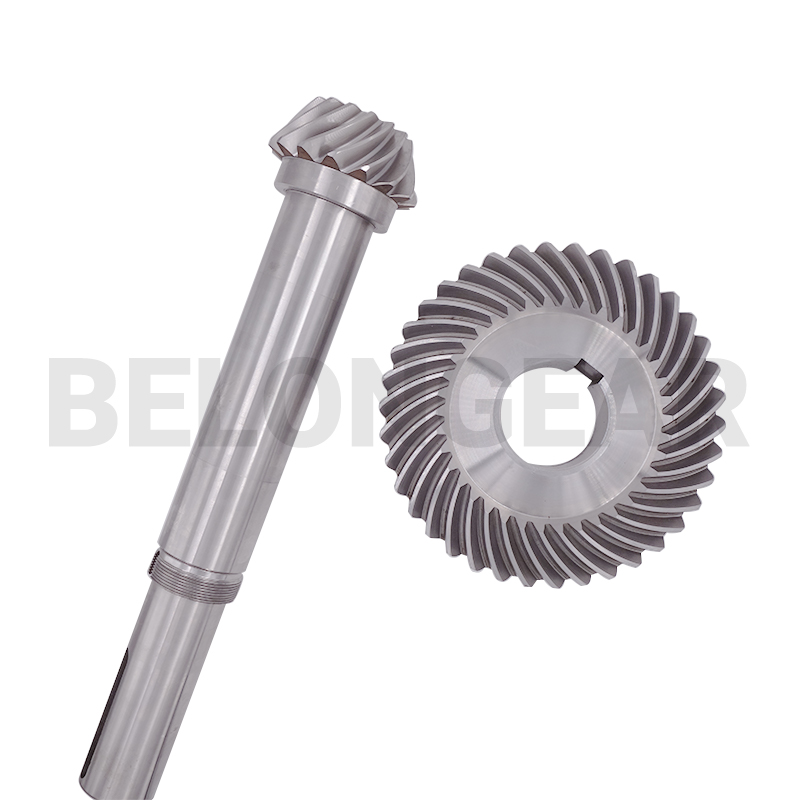

4. Spiral Bevel Gear

   • Structure: Curved teeth on conical gear

   • Advantages: Smoother and quieter than straight bevel, better torque capacity

   • Limitations: Higher manufacturing cost

   • Typical Use: High-performance winches requiring precision and strength

5. Worm Gear

   • Structure: Screw-like worm meshes with a worm wheel

   • Advantages: High torque reduction, compact size, self-locking feature

   • Limitations: Lower efficiency, heat buildup under continuous use

   • Typical Use: Anchor winches, hoisting winches with holding requirements

6. Planetary Gear (Epicyclic Gear)

   • Structure: Central sun gear, orbiting planet gears, outer ring gear

   • Advantages: High torque in compact form, balanced load distribution, high efficiency

   • Limitations: Complex design, harder to maintain

   • Typical Use: Electric or hydraulic winches, deep-sea and offshore applications

Why Choose Belon Gear for Marine Applications?
From heat treated alloy steel materials to advanced tooth grinding techniques, Belon Gear delivers custom engineered gear solutions built to endure saltwater corrosion, high load conditions, and continuous operation. Our engineering team works closely with winch manufacturers to develop gears optimized for each unique use case.

With Belon Gear, you’re not just buying a gear you’re investing in reliability, precision, and peace of mind at sea.
