Worm gears are one of the most reliable and widely used gear mechanisms in power transmission systems. Their unique design, which consists of a threaded worm meshing with a gear wheel, allows for high torque transmission, smooth motion, and excellent load-carrying capacity in a compact form. At Belon Gear, we specialize in providing OEM high efficiency engineering worm gears tailored for automation equipment and advanced industrial machinery.

High Efficiency Worm Gears for Automation

Automation equipment demands precision, durability, and consistent performance. Belon Gear designs and manufactures OEM worm gears using advanced technologies and premium materials such as alloy steel, bronze, and wear resistant coatings. The result is an optimized gear system that delivers:

• High torque transmission with compact structure

• Low noise and vibration for smooth operation

• Long service life with excellent wear resistance

• Customizable gear ratios to meet specific automation needs

From robotic arms and automated conveyors to precision positioning systems, worm gears manufactured by Belon Gear ensure reliable motion control and efficiency in demanding applications.

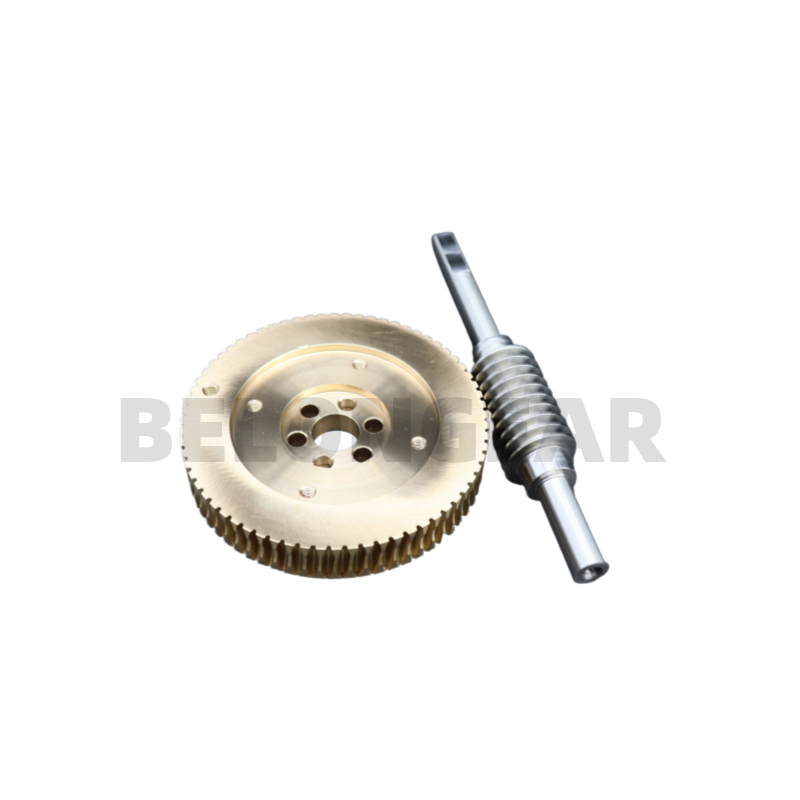

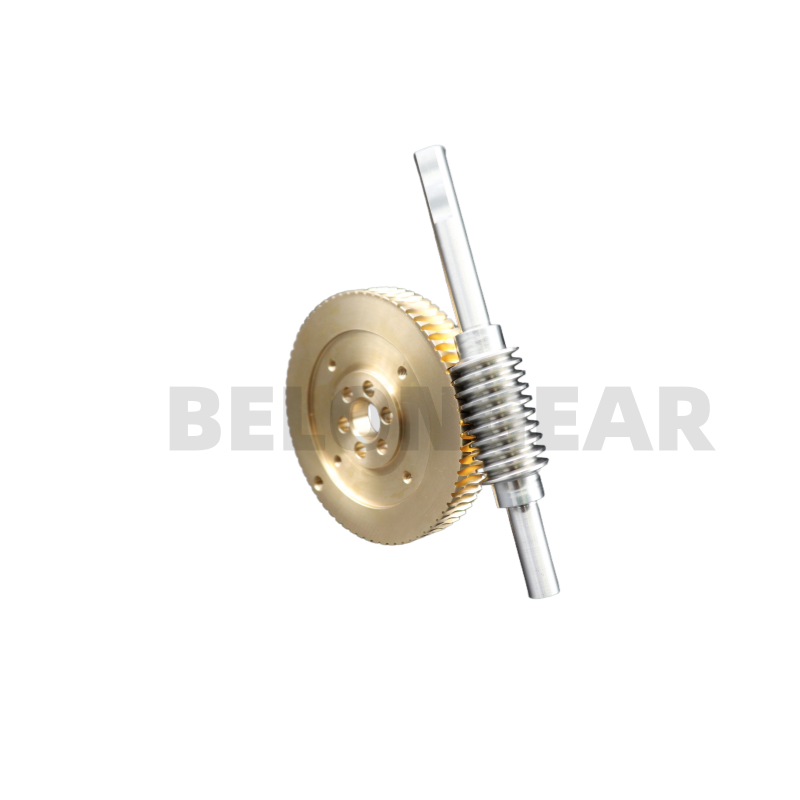

Worm Gears Specification | Belon Gear

Types	Supply Status	Module (M)	Diameters (mm)	Accuracy (DIN)	Regular Materials
Worm Wheel	Hobbing / Milling	M0.5 – M45	Φ10 – Φ2600	DIN 8 – 9	Brass, Bronze, Alloy Steel, Stainless Steel
Worm Shaft	Milling + Grinding	M0.5 – M45	Φ10 – Φ2600	DIN 5 – 6	Carbon Steel, Alloy Steel, Stainless Steel
Profile	ZC / ZI / ZN / ZK / ZA	Customizable	Customizable	Customizable	Customizable

Where Are Worm Gears Used?

The versatility of worm gears makes them applicable across many industries. Some of the most common uses include:

1. Automation and Robotics
Worm gears are essential in robotic joints, lifting systems, and motion platforms. Belon Gear’s worm gear solutions provide precise control at low speeds, making them ideal for automated assembly lines and robotic manipulators.

2. Material Handling and Conveyors
Conveyor systems in logistics, packaging, and airports rely on worm gears for controlled movement. Belon Gear delivers worm gears capable of handling heavy loads with smooth, efficient operation.

3. Lifts, Hoists, and Elevators
Worm gears are preferred in lifting applications due to their self-locking properties. Belon Gear provides safe and reliable worm gears for hoisting mechanisms, ensuring stability when machines are idle.

4. Automotive and Transport
From steering systems to seat adjustments, worm gears are common in vehicles. Belon Gear manufactures compact worm gear solutions that fit perfectly into limited automotive spaces.

5. Textile and Printing Machinery
In printing presses and textile machines, worm gears support precision and stability. Belon Gear supplies gears that guarantee consistent and smooth performance in these industries.

6. Marine and Heavy Equipment
Marine steering systems, cranes, and mining machinery demand robustness. Worm gears produced by Belon Gear are engineered for durability and high torque in harsh environments.

7. Industrial Power Transmission
Gearboxes with worm gear stages are widely used in compressors, pumps, and turbines. Belon Gear ensures efficient torque transfer with customized worm gear sets.

Item	Details
Products	Worm gear and worm
Custom	OEM, drawing or sample customization
Surface Treatment	Blackening, electroplating, oxidation, electrophoresis Hardness treatments: high frequency quenching, carburizing quenching, tempering, vacuum treatment
Material	45# steel, aluminum, stainless steel, 42CrMn, 20CrMnTi ，Brass, Bronze
Production Equipment	High speed sawing machine, wire cutting machine, CNC lathe, CNC hobbing machine, machining center, cylindrical grinding machine, forming gear grinding machine, slotting machine, marking machine
Processing Technology	Gear processing, grinding processing, milling processing, slow wire
Application Industry	Robot industry, medical industry, printing industry, machinery manufacturing, packaging industry, new energy industry

Belon Gear – Your OEM Partner in Worm Gear Solutions

At Belon Gear, we understand that every industry has unique technical requirements. We provide custom OEM worm gear design and manufacturing services to match each client’s load, speed, and performance needs. Our advanced gear hobbing, grinding, and heat treatment processes ensure precision, durability, and high efficiency.

As industries continue to embrace automation and intelligent systems, the demand for reliable worm gears is growing rapidly. With a strong commitment to quality and innovation, Belon Gear stands as a trusted OEM partner for worm gear solutions in automation, robotics, and heavy industry worldwide.
