Internal Ring Gears for Wind Power Planetary Gearboxes Precision and Reliability by Belon Gear

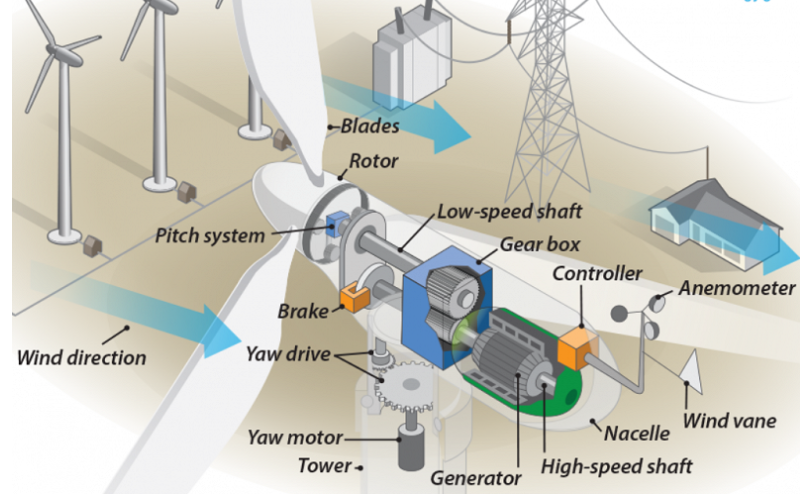

In the rapidly evolving renewable energy sector, wind power stands out as one of the most sustainable and widely adopted energy sources. At the heart of a wind turbine’s drivetrain lies a highly efficient planetary gearbox, which plays a critical role in transferring energy from the rotor to the generator. Among the essential components in this system is the internal ring gear, a precision part that ensures smooth torque transmission, durability, and optimal performance.
Belon Gear a leading gear manufacturer, offers high quality internal ring gears tailored for wind power applications.

The Role of Internal Ring Gears in Planetary Gearboxes

Planetary gearboxes are known for their compact structure, high torque density, and efficiency, making them ideal for wind turbine systems. A typical planetary gearbox consists of a central sun gear, multiple planet gears, and a fixed or rotating internal

ring gear. The internal ring gear, also known as the ring gear or annulus, serves as the outer boundary of the system, meshing with the planet gears to enable the distribution of torque.

In wind turbine gearboxes, internal ring gears must withstand extreme operational conditions including variable wind loads, high torque, and prolonged operating hours. As such, they require exceptional precision, material strength, and surface treatment to ensure reliability and longevity.

Best Gears for Wind Turbines

Wind turbines require highly durable and efficient gear systems to convert wind energy into electrical power. The most commonly used gears in wind turbines are planetary gears and helical gears, known for their high load capacity, smooth operation, and ability to handle varying wind speeds. Bevel gears are also used in yaw and pitch systems to adjust turbine direction and blade angles. These gears must be made from high-strength materials and undergo precise machining and heat treatment to ensure long service life and minimal maintenance. At Belon Gear, we specialize in producing custom wind turbine gears that meet strict performance and environmental standards. Our advanced manufacturing techniques ensure excellent alignment, low noise, and high efficiency essential for modern wind energy systems. Whether for main gearboxes or pitch control, we provide reliable gear solutions tailored to your turbine design.

Belon Gear – Engineering Excellence in Gear Manufacturing

Belon Gear specializes in the manufacturing of customized gears, including internal ring gears for wind power planetary gearboxes. With years of experience in high precision gear production, Belon Gear leverages advanced CNC machining, heat treatment technology, and strict quality control standards to produce gears that meet or exceed industry requirements.

Key advantages of Belon Gear’s internal ring gears include:

High dimensional accuracy: Ensures perfect meshing with planet gears, reducing wear and energy loss.

Premium materials: Typically made from alloy steels or forged rings with optimized hardness and toughness.

Surface treatments: Such as carburizing, nitriding, and shot peening to enhance fatigue resistance and minimize surface friction.

Custom design: Tailored according to customer specifications, including tooth profile, module, helix angle, and internal diameter.

Applications in Wind Turbine Gearboxes

Belon Gear’s internal ring gears are widely used in main gearboxes of wind turbines ranging from 1.5 MW to 6 MW and above. These components are engineered to handle high load capacities and offer stable performance under fluctuating torque loads, ensuring the gearbox operates reliably throughout the turbine’s service life.

Additionally, Belon Gear provides engineering support and CAD modeling services, assisting customers in optimizing gear design for efficiency and manufacturability. This makes Belon Gear not just a supplier, but a long term technology partner in the wind energy sector.

Commitment to Sustainability and Innovation

As the demand for clean energy grows, gear manufacturers must adapt to higher expectations in quality, performance, and environmental responsibility. Belon Gear is committed to sustainable manufacturing practices, using eco friendly materials and processes, and investing in R&D to support the evolving needs of the wind power industry.

Internal ring gears are a cornerstone of efficient wind power gearboxes, and their performance directly impacts the reliability and output of wind turbines. With deep expertise in precision gear manufacturing, Belon Gear delivers high performance internal ring gears designed to withstand the rigors of wind turbine applications. Whether you’re developing next generation turbines or maintaining existing fleets, Belon Gear is your trusted source for reliable, customized gear solutions.

Contact Belon Gear today to learn more about our internal ring gears and how we can support your wind energy projects.
