In modern mechanical transmission systems, precision and durability are critical. One of the most essential components used to transfer motion between intersecting shafts is the straight bevel gear pinion. Especially in gearboxes, this type of gear plays a key role in ensuring stable torque transmission and long service life.
This guide explains what a straight bevel gear pinion is, how to manufacture it, why choose steel material, its applications, and why choosing a reliable manufacturer like Belon Gear matters.
What Is a Straight Bevel Gear Pinion?

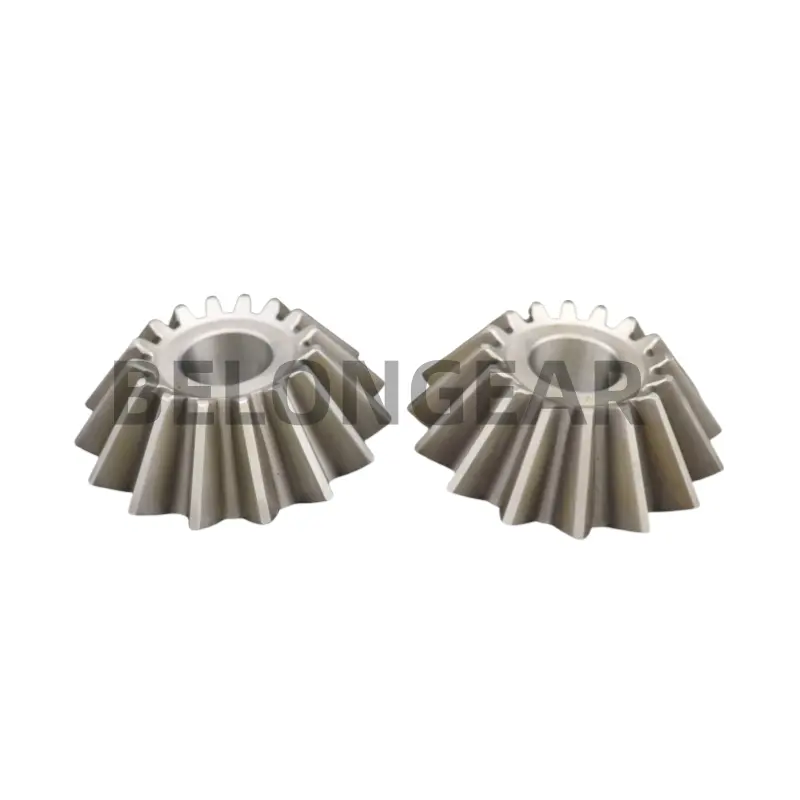

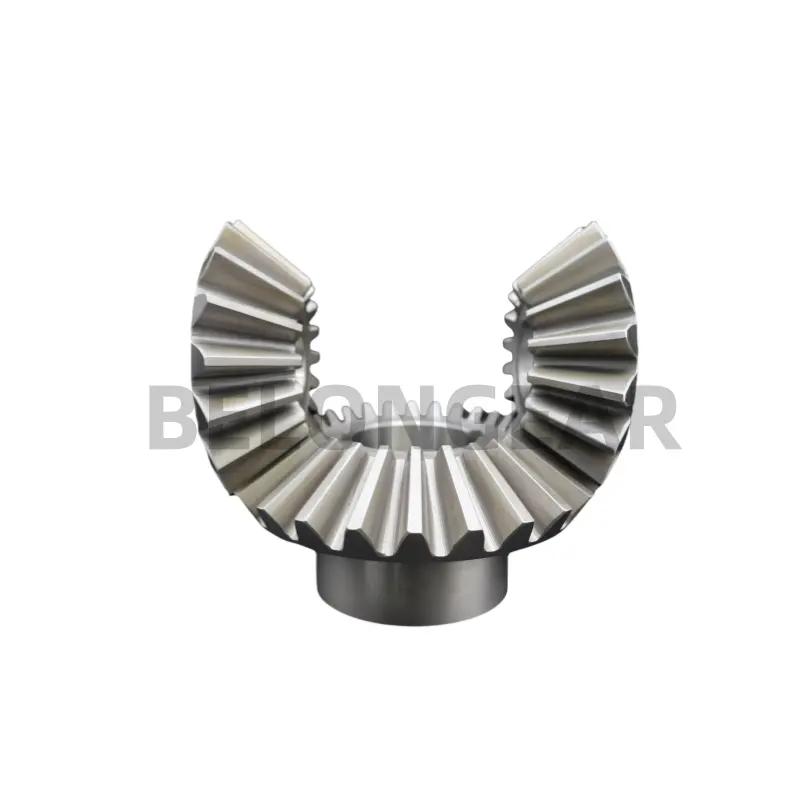

A straight bevel gear pinion is a type of bevel gear with straight teeth that is used to transmit motion between two shafts that typically intersect at a 90-degree angle.
Unlike spur gears, which operate on parallel shafts, bevel gears are designed for angular transmission. The pinion is usually the smaller gear in a bevel gear pair and drives or is driven by a larger mating gear.
How Are Straight Bevel Gear Pinions Manufactured?
The manufacturing process directly determines the precision and durability of a gear.

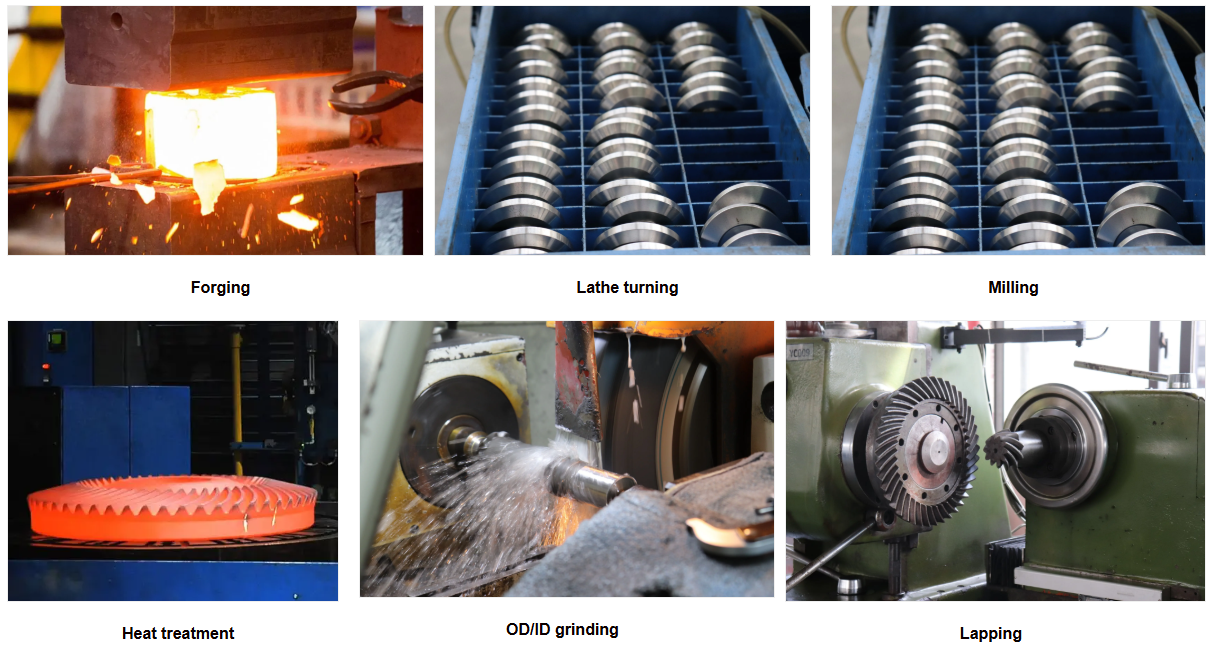

Typical production steps:
1. Raw Material Selection
High-quality alloy steel is selected to ensure strength and durability.
2. Forging or Turning
The blank is formed into the initial gear shape.
3. Gear Cutting
Advanced machines (such as Gleason systems) are used to cut precise tooth profiles.
4. Heat Treatment
Processes like carburizing and quenching improve hardness and wear resistance.
5. Grinding and Finishing
Final machining ensures high accuracy and smooth surface finish.
6. Quality Inspection
Each gear undergoes strict inspection, including dimensional checks and hardness testing.
This controlled process ensures that every gear meets international standards and performs reliably under demanding conditions.
Why Choose Steel Material?
Material selection is one of the most important production steps affecting gear performance.
Advantages of steel bevel gear pinions:
High strength – suitable for heavy loads and torque
Excellent wear resistance – especially after heat treatment
Long service life – reduced maintenance frequency
Good machinability – allows precise gear cutting
Alloy steels such as 20CrMnTi or similar carburizing steels are commonly used to enhance hardness and fatigue resistance.
What Are Straight Bevel Gear Pinions Used For?
Straight bevel gear pinions are widely used across multiple industries due to their simplicity and effectiveness.
Common applications include:
Industrial gearboxes – transmitting power between intersecting shafts
Agricultural machinery – such as harvesters and tractors
Automotive systems – especially in differential mechanisms
Construction equipment – heavy-duty torque transmission
Mining machinery – durable performance under high load
Because of their robust structure, they are particularly suitable for applications where reliability is more important than ultra-smooth operation.
Key Specifications of Straight Bevel Gear Pinion
Typical specifications:
|
Parameter |
Description |
| Material | Alloy steel (e.g., 20CrMnTi) |
| Heat Treatment | Carburizing, quenching, tempering |
| Hardness | HRC 58–62 (surface) |
| Accuracy Grade | DIN 6–8 (customizable) |
| Module Range | Custom based on application |
| Surface Finish | Ground or machined |
| OEM/ODM | Supported |
Each gear pinion can be tailored to meet specific gearbox requirements, ensuring optimal performance in real-world applications.
Why Choose Belon Gear as Your Supplier?
Choosing the right manufacturer is just as important as selecting the right gear.
Belon Gear offers:
Extensive manufacturing experience in precision gears
Advanced production equipment for consistent quality
Strict quality control systems
Customization capabilities (OEM & ODM)
Global export experience serving multiple industries
By combining engineering expertise with modern production technology, Belon Gear ensures that every product meets the highest standards of performance and reliability.
FAQ
What materials are best for bevel gears?
The selection of materials for bevel gears requires the optimal balance among strength, cost, processing performance and working conditions. But up to now, the most common choice is alloy steels such as 20CrMnTi due to their high strength, wear resistance, and suitability for heat treatment.
How do I choose the right gear pinion for a gearbox?
We recommend that you should first consider load requirements, speed, material, precision level, and operating environment. Customization is often necessary for optimal performance. If you have any question, feel free to get in touch with us.
What is the lifespan of a bevel gear?
It’s not a fixed figure. With proper material selection and heat treatment, bevel gears can last for many years under normal operating conditions, depending on load and maintenance.
Can straight bevel gear pinions be customized?
Yes, most manufacturers, including Belon Gear, offer full customization based on drawings or specific application requirements.
A high-quality steel straight bevel gear pinion is essential for efficient and reliable gearbox performance. From material selection to precision manufacturing, every step plays a role in ensuring durability and accuracy.
Belon Gear provides customized solutions backed by advanced technology and strict quality control, making it a trusted partner for industrial gear applications worldwide.
Post time: Apr-03-2026
