Bevel Gear Speed Ratio sets mining equipment apart by balancing torque and speed for demanding tasks. Selecting the correct gear ratio impacts efficiency, energy conservation, heat management, and load handling. The table below highlights why gear selection is critical in mining operations:
| Aspect | Explanation |
| Efficiency | Optimizes machine performance and reduces energy loss. |
| Power Transmission | Balances torque and speed for maximum output. |
| Load Handling | Increases torque for heavy loads or speed for faster cycles. |
| Heat Management | Controls friction and prevents equipment damage. |
Choosing the right gear type ensures reliable performance and extends equipment life in mining scenarios.
What Is Bevel Gear Speed Ratio
The bevel gear speed ratio plays a critical role in mining equipment. This ratio describes the relationship between the rotational speeds of two meshing bevel gears. It is calculated by dividing the number of teeth on the driven gear by the number of teeth on the driving gear. The formula for this calculation is i = n1/n2 = z2/z1, where n1 and n2 represent the rotational speeds of the driving and driven gears, and z1 and z2 represent their respective number of teeth.
• The bevel gear speed ratio determines how torque and speed transfer between intersecting shafts.
• A higher ratio increases torque but reduces output speed, which is essential for heavy-duty mining machinery.
• A lower ratio increases speed but reduces torque, suitable for applications requiring rapid movement.
• This ratio helps engineers design gearboxes that match the operational needs of mining equipment.
Mining operations demand reliable power transmission under extreme loads. The bevel gear speed ratio ensures that equipment like crushers and conveyors operate efficiently and safely. Proper ratio selection prevents mechanical failures and extends the lifespan of critical components.
Bevel Gear Speed Ratio Overview
Ratio Comparison with Other Gears
Mining equipment uses several gear types, each with unique speed ratio characteristics. The table below compares the bevel gear speed ratio with those of helical, spur, and worm gears:
| Gear Type | Typical Speed Ratio Range | Efficiency | Common Mining Use Cases | Notable Features |
| Bevel Gear | 1:1 to 6:1 (can be higher with advanced designs) | High | Crushers, conveyors, drilling rigs, haul trucks | Transmits power between intersecting shafts; precise ratio control |
| Helical Gear | 3:2 to 10:1 | High | Conveyors, mixers, pumps | Smooth, quiet operation; parallel or crossed shafts |
| Spur Gear | 1:1 to 6:1 | Moderate-High | Feeders, crushers, screens | Simple design; parallel shafts |
| Worm Gear | 5:1 to 100:1 | Lower (up to 90%) | Hoists, winches, elevators | High reduction in compact space; right-angle shafts |
The bevel gear speed ratio offers a balance between torque and speed, making it ideal for mining applications that require both power and precision. Advanced products like the High Speed Ratio Straight Bevel Gear from Belon Gear push the boundaries of traditional ratios. These gears use high-quality alloy steels and precision machining to achieve superior strength and durability. Their design allows for efficient power transmission even in the harshest mining environments.
Note: Selecting the correct bevel gear speed ratio ensures optimal performance, reduces energy loss, and increases the reliability of mining equipment.
The bevel gear speed ratio stands out for its versatility and adaptability. It supports a wide range of mining machinery, from heavy-duty crushers to high-speed conveyors. This flexibility, combined with advanced manufacturing from companies like Belon Gear, makes bevel gears a preferred choice for demanding mining operations.
Gear Types in Mining Equipment
Bevel Gears: Features and Operation
Bevel gears play a vital role in mining equipment. These gears have conical teeth that allow them to transmit power between intersecting shafts, usually at a 90-degree angle. Bevel gears are engineered for high load-bearing capacity, making them ideal for heavy-duty mining applications. The unique tooth design of bevel gears allows them to transmit power smoothly between intersecting shafts, with appropriate vibration and noise levels for harsh environments. Bevel gears operate on the principle of angular transmission. The teeth of bevel gears engage at the apex of their conical surfaces, allowing for efficient torque transfer with minimal energy loss.
Mining equipment such as crushers, conveyors, drilling rigs, and haul trucks rely on bevel gears for reliable power transmission. The durability of bevel gears is enhanced by advanced manufacturing processes. Belon Gear uses high-quality alloy steels and precision CNC machining to produce bevel gears with accurate tooth geometry. This attention to detail ensures that bevel gears deliver consistent performance and long service life, even under extreme loads. The robust construction of bevel gears makes them a preferred choice for mining operations that demand both strength and precision.
Helical, Spur, and Worm Gears: Basics
Mining equipment also uses helical, spur, and worm gears. Each gear type has distinct features and applications:
| Gear Type | Design Features | Applications in Mining Equipment |
| Helical Gears | Angled teeth for smoother operation | Higher load capacity, suitable for various mining tasks |
| Spur Gears | Straight teeth, simpler design | Cost-effective, used in conveyor systems |
| Worm Gears | Screw-like design, high-reduction ratios | Ideal for lifting and conveyor systems |
| Bevel Gears | Straight or spiral teeth for direction change | Robust, used for heavy-duty applications in mining equipment |
Helical gears provide smooth and quiet operation, making them suitable for equipment that requires high load capacity. Spur gears offer a simple and cost-effective solution for conveyor systems. Worm gears are used when high reduction ratios are needed, such as in lifting and conveying applications. Bevel gears stand out for their ability to change the direction of power transmission and handle heavy loads efficiently. The precision and durability of bevel gears, especially those manufactured by Belon Gear, ensure optimal performance in demanding mining environments.

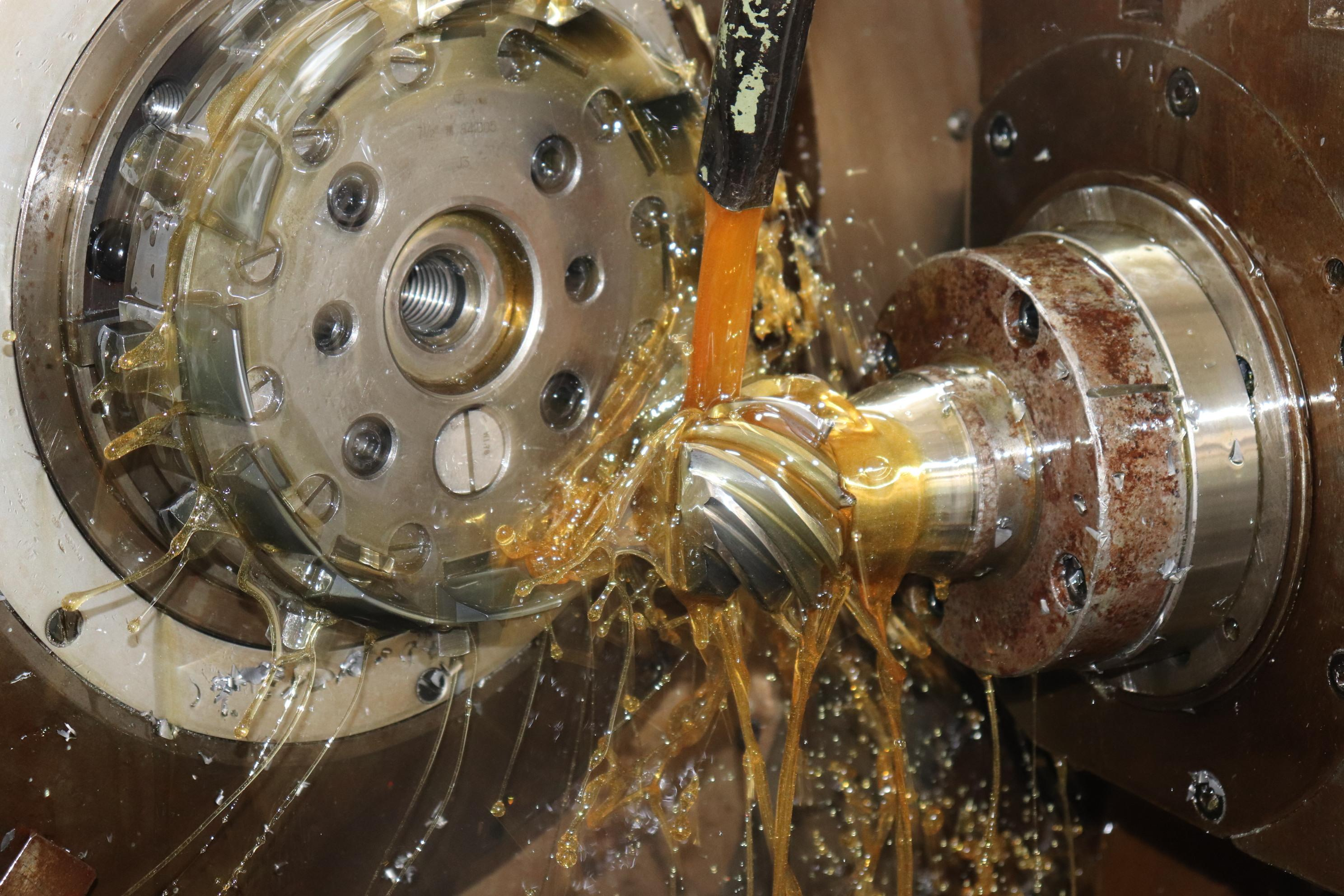

Speed Ratio and Performance
Bevel Gear Speed Ratio Impact
The speed ratio in bevel gears plays a decisive role in mining equipment performance. This ratio determines how much the input speed changes as it passes through the gear set. In mining machinery, the right ratio ensures that torque and speed match the demands of the application. A higher ratio increases torque output, which is essential for equipment like crushers and haul trucks that must handle heavy loads. A lower ratio delivers higher speed, which benefits conveyors and drilling rigs that require rapid movement.
Transmission efficiency is a key factor influenced by the ratio. Bevel gears, especially spiral and straight types, offer high transmission efficiency, which means less energy is lost during power transfer. The table below summarizes how different bevel gear designs compare in terms of efficiency and load capacity:
| Gear Type | Efficiency Range | Load Capacity Description |
| Spiral Bevel Gears | 94%–97% | Higher contact ratio leads to increased load capacity. |
| Hypoid Gears | 93%–96% | Largest meshing contact area, highest load capacity, but efficiency losses at large ratios. |
| Straight Bevel Gears | 92%–95% | Low contact ratio, high single-tooth load sharing, lowest load capacity. |
| Zerol Bevel Gears | 92%–95% | Similar to straight bevel gears, with significant meshing impact and sliding friction losses. |
A well-chosen ratio in bevel gears maximizes transmission efficiency and ensures reliable operation under extreme conditions. High speed ratio straight bevel gears, such as those produced by Belon Gear, excel in heavy-duty mining applications. These gears provide robust torque multiplication, allowing equipment to process large volumes of material without sacrificing speed or efficiency. The precise tooth geometry and advanced materials used in these gears further enhance their ability to maintain high transmission efficiency, even when subjected to continuous, high-load cycles.
Note: Selecting the optimal ratio for bevel gears directly impacts the durability and productivity of mining equipment.
Ratio Effects in Other Gears
Other gear types, such as helical, spur, and worm gears, also rely on the correct ratio to achieve desired performance. Each gear type responds differently to changes in ratio, affecting transmission efficiency, load capacity, and operational characteristics.
| Characteristic | Description |
| Efficiency | Efficiency varies with the ratio; low ratios (5:1–10:1) can achieve 90–98%, but high ratios (50:1) may drop below 50%. |
| Shock-Load Resistance | Worm drives can absorb shock loads effectively, making them suitable for heavy-duty mining applications. |
| Self-Locking | Many worm drives prevent backdriving, acting as a brake, which is crucial for safety in mining equipment. |
| Large Single-Stage Reduction | A single worm stage can achieve large ratios (5:1 to 100:1), simplifying design and enhancing performance. |
| Lower Efficiency | Efficiency loss occurs due to sliding contact, with typical efficiency ranging from ~90% at low ratios to 30–50% at high ratios. |
Helical gears maintain high transmission efficiency at moderate ratios, making them suitable for applications that require both speed and load handling. Spur gears offer reliable performance at lower ratios, but their efficiency can decrease as the ratio increases. Worm gears stand out for their ability to achieve very high ratios in a single stage, which simplifies gearbox design. However, as the ratio increases, transmission efficiency drops due to increased sliding friction. This trade-off means that while worm gears are excellent for applications needing high reduction and self-locking features, they may not be the best choice where maximum efficiency is required.
In mining equipment, the choice of ratio in each gear type must align with the operational goals. For example, a conveyor system may benefit from a moderate ratio in a helical gear set to balance speed and load. A hoist may require a high ratio in a worm gear to ensure safety and control, even if it means accepting lower transmission efficiency.
Tip: Always match the gear ratio to the specific demands of the mining application to optimize both performance and energy use.
The ratio not only affects how much torque or speed is delivered but also influences the overall transmission efficiency and the ability of the equipment to withstand heavy loads. High speed ratio straight bevel gears from Belon Gear demonstrate how advanced engineering can push the limits of both ratio and efficiency, delivering reliable performance in the most demanding mining environments.
Efficiency, Load, and Durability
Bevel Gears: Load and Durability
Bevel gears play a central role in mining equipment where both load and durability are critical. These gears transmit power between intersecting shafts, often under extreme stress. The unique tooth geometry of bevel gears allows for efficient torque transfer and high load-carrying capacity. Mining machinery such as crushers and haul trucks rely on bevel gears to handle heavy loads without failure. The durability of bevel gears depends on both material selection and manufacturing precision.
Belon Gear uses high-quality alloy steels for bevel gears. This material provides exceptional strength and resists wear during continuous operation. Advanced heat treatment processes increase toughness, which is essential for mining environments. Precision CNC machining ensures that each gear tooth meshes smoothly, reducing vibration and extending service life. The use of state-of-the-art equipment, such as Gleason gear milling and grinding machines, guarantees consistent quality. Before delivery, each set of bevel gears undergoes strict inspection, including ultrasonic testing and dimensional checks. These practices result in bevel gears that maintain performance and reliability in the harshest mining conditions.
Other Gears: Efficiency Comparison
Efficiency varies among gear types used in mining equipment. Spur gears offer the highest efficiency, reaching up to 99%. Helical gears follow closely, with ratings between 94% and 98%. Bevel gears also provide high efficiency, especially when precise installation is achieved. Worm gears, while compact and capable of high torque, have lower efficiency due to sliding friction.
| Gear Type | Efficiency Rating | Application Notes |
| Spur Gear | 98-99% | Best for conveyors and machinery needing maximum efficiency |
| Helical Gear | 94-98% | Preferred for quiet, high-speed, and durable mining applications |
| Bevel Gear | High | Ideal for changing direction of power in heavy-duty mining equipment |
| Worm Gear | Low-Medium | Used for high torque, low-speed tasks; accepts efficiency trade-offs |
Material selection also impacts gear performance. Steel, used in bevel gears, offers high strength and toughness. Cast iron withstands repeated wear, while bronze provides corrosion resistance for worm wheels. The combination of advanced materials and manufacturing ensures bevel gears deliver superior durability and efficiency in mining operations.
Mining Applications and Selection
Bevel Gears in Mining Equipment
Bevel gears ensure reliable power transmission in the mining machines, even under full load. Their design allows for efficient gear ratio management, which helps operators match torque and speed to the task. The ability to change direction and distribute load evenly makes bevel gears a preferred choice in harsh mining environments.
The operational benefits of bevel gears in mining equipment are summarized below:
| Benefit | Description |
| Power Transmission | Enables transfer of power between crossing shafts in machinery. |
| Directional Changes | Facilitates orientation changes in drive systems. |
| Load Distribution | Improves load distribution across the gear system. |
| Noise Reduction | Reduces operational noise levels. |
| Vibration Control | Helps in controlling vibrations during operation. |
Choosing the Right Gear Ratio
Selecting the optimal gear ratio for mining equipment requires careful analysis. Engineers must consider the following criteria:
| Criteria | Description |
| Load Profile Analysis | Analyze torque and match drive types to application needs. |
| Environmental Profiling | Assess dust, moisture, and temperature resistance. |
| Torque Density | Achieve high torque in limited space. |
| Efficiency | Reduce energy costs with direct-drive gearboxes. |
| Fatigue Resistance | Use advanced coatings for durability. |
| Total Cost of Ownership | Prioritize long-term savings over initial costs. |
Bevel gears offer flexibility in gear ratio selection, supporting both high torque and speed requirements. Power transmission efficiency remains high, which is vital for productivity. Customization and OEM replacement options from Belon Gear allow mining companies to specify bevel gears that fit unique operational needs. These tailored solutions ensure compatibility, reliability, and cost-effectiveness in demanding mining environments.
Mining equipment requires careful gear selection. The table below highlights how speed ratios impact gear performance and efficiency:
| Gear Type | Efficiency (%) | Speed Ratio Range | Application Focus |
| Bevel | 92–97 | 1:1–6:1 | Heavy-load, direction change |
| Helical | 95–98 | 1:1–10:1 | High efficiency, stable |
Matching gear performance to operational needs ensures durability and productivity.
FAQ
What makes bevel gears suitable for mining equipment?
Bevel gears transmit power between intersecting shafts. Gears handle heavy loads and provide efficient torque transfer. Gears offer durability and reliability in harsh mining environments. Gears support direction changes in machinery.
How do speed ratios affect mining equipment performance?
Speed ratios in gears determine torque and speed output. Gears with higher ratios increase torque for heavy loads. Gears with lower ratios boost speed for rapid operations. Gears optimize machinery efficiency.
Can gears be customized for specific mining applications?
Yes, gears can be tailored for unique mining needs. They can be designed to match shaft angles, load requirements, and operational speeds.Belon Gear offer customization and OEM replacement options for mining equipment.
